REVERSE CAMERA SYSTEMS

GC EK003

TECHNICAL SPECIFICATION

Operating Voltage	12/24V Reverse Polarity Test
Screen Size	7 Inch TFT-LCD
Power Supply	DC 9-30V
Signal Input	2 Channel Signal Input
Control	Full Function Remote Control
Reverse Function	Compulsive Switch to Rear Image When Reversing (Reversing 12V Signal)

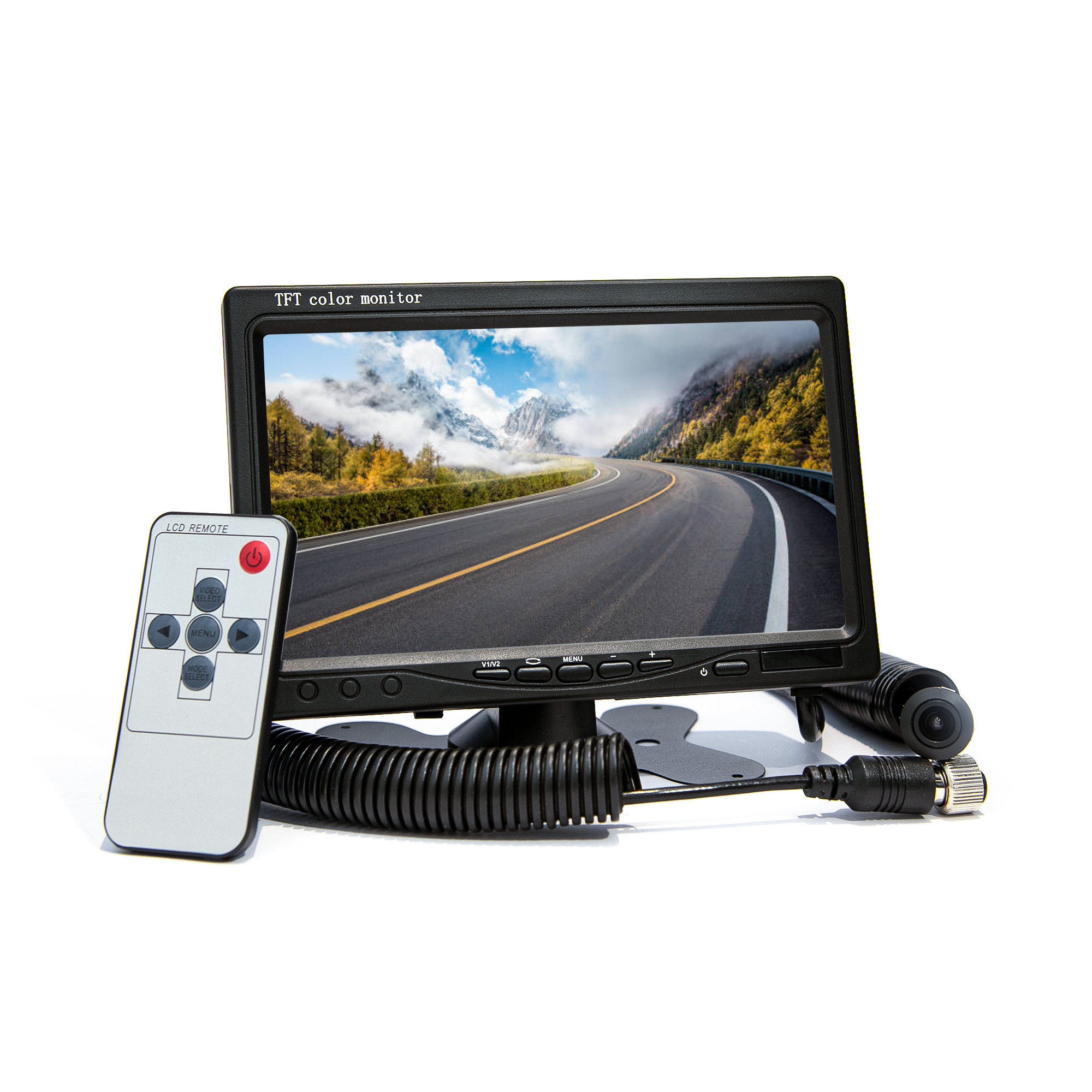

GC-JC02

TECHNICAL SPECIFICATION

Display

SCREEN SIZE	7 INCH TFT-LCD
POWER SUPPLY	DC 9-40VOSD
MENU LANGUAGES	ENGLISH
SIGNAL	2 CHANNEL CVBS SIGNAL INPUT
CONTROL	FULL FUNCTION REMOTE CONTROL
REVERSE FUNCTION	COMPULSIVELY SWITCH TO REAR IMAGE WHEN REVERSING (REVERSING 12V SIGNA)
BACKGROUND COLOR	COLOUR BACKGROUND AUTOMATICALLY BLUE

Camera

CABLE	4PIN CABLEPOWER
SOURCE	DC12V 10%, POWERED BY MONITOR
OPERATION TEMPERATURE	20 C~+75 C (RH95%MAX.)

GC TH002

TECHNICAL SPECIFICATION

Display

Display	TFT Color LCD Monitor
Monitor	7" Digital
Resolution	1024 x (RGB) x 600
Viewing Angle (LR/UD)	L/R:80/85_U/D:80/85
Display Mode	Single/Split/Triple/Quad view
Video Single Input	4 CH Support 1080/960P/720P/CVBS mix Single input
Power	DC 11-32V

Camera

Camera	HD Waterproof Camera
Effective Pixels	1920(H)x1080(V)/1280(H)x960(V)
Waterproof Level	IP69K (100% Waterproof)
Operative Voltage	12V DC
