DUAL CHARGER & MDC CHARGER

C-TYPE CHARGER

GC-4591

GC-5158

GC-N222

GC-TT022

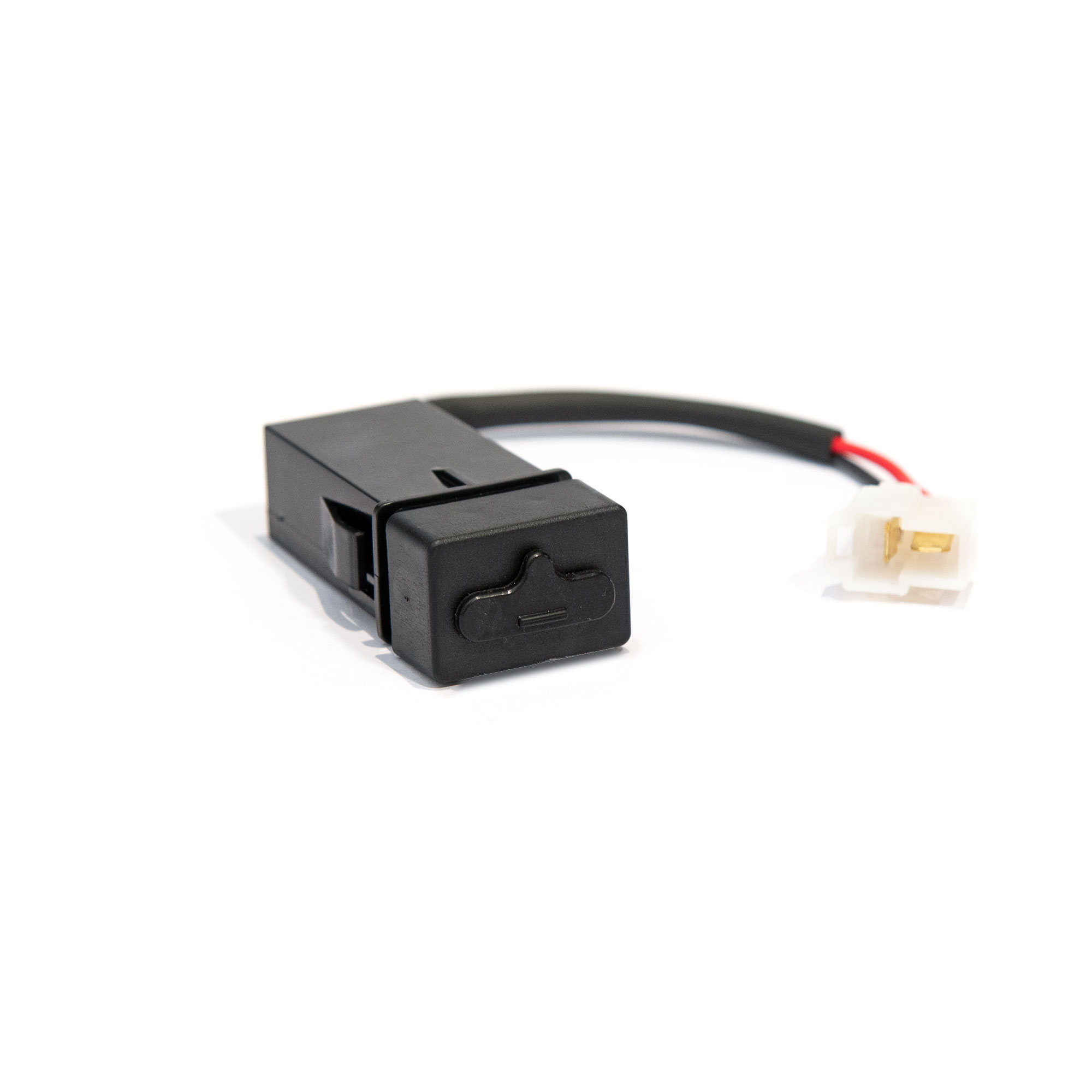

C-TYPE CHARGER

TECHNICAL SPECIFICATION

For 2 Wheeler
 Operating Voltage : 11.5-12.5 V
 Max Input Current : 1.8 A
 LED Output when load is connected : Green
 LED Output in Idle State : White
 Possible Output Configuration : 5V-3A, 9V-2A
 In Rush Current Specification : < 3A
 IP Rating : IP64

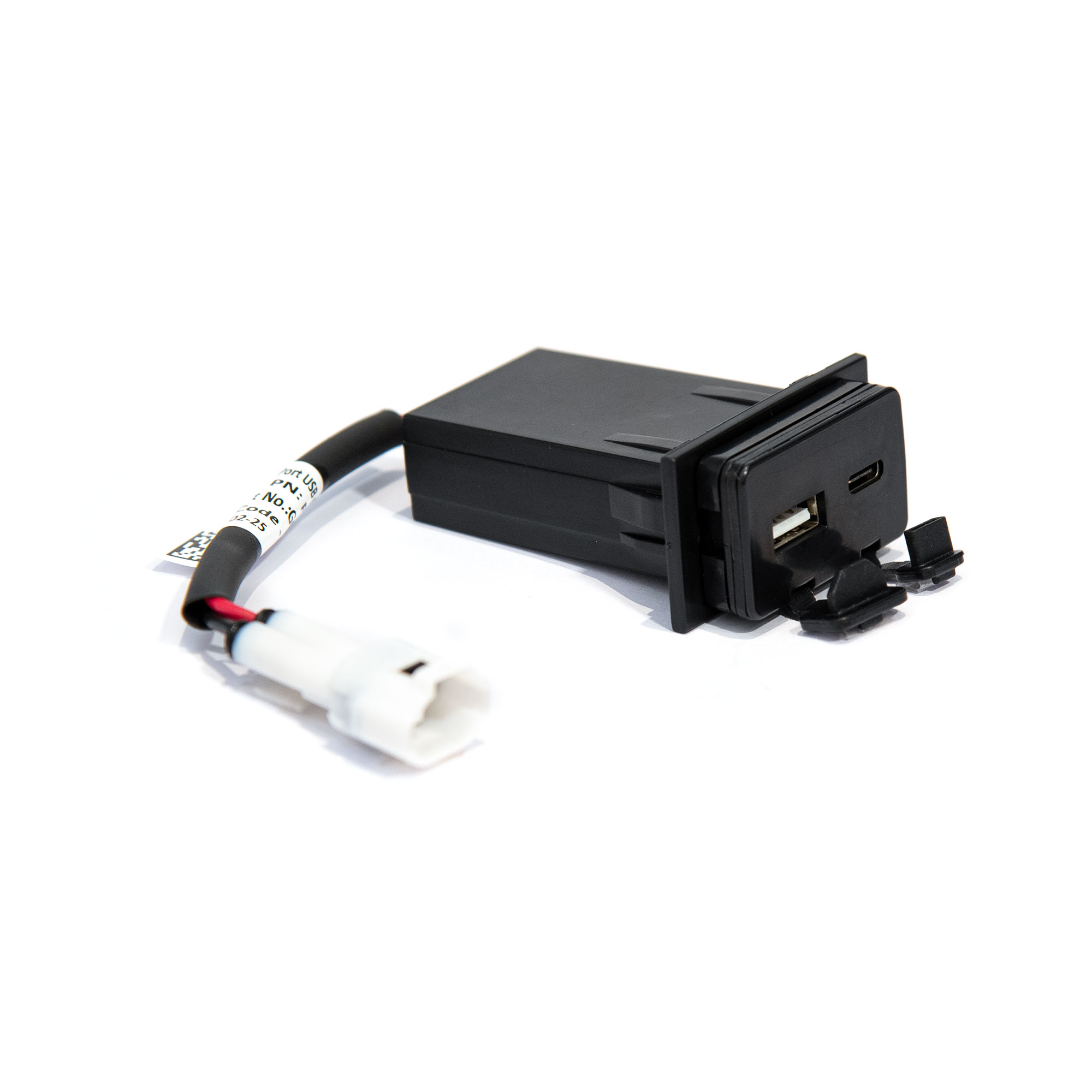

GC-4591

TECHNICAL SPECIFICATION

 Input Voltage : 12V-24V DC
 Output Voltage : 5V DC
 Output Current : 3A for each port
 USB : 2.0 for A & C Port
 IP Rating : IP65
 No. of Ports : 2 for A & A Port

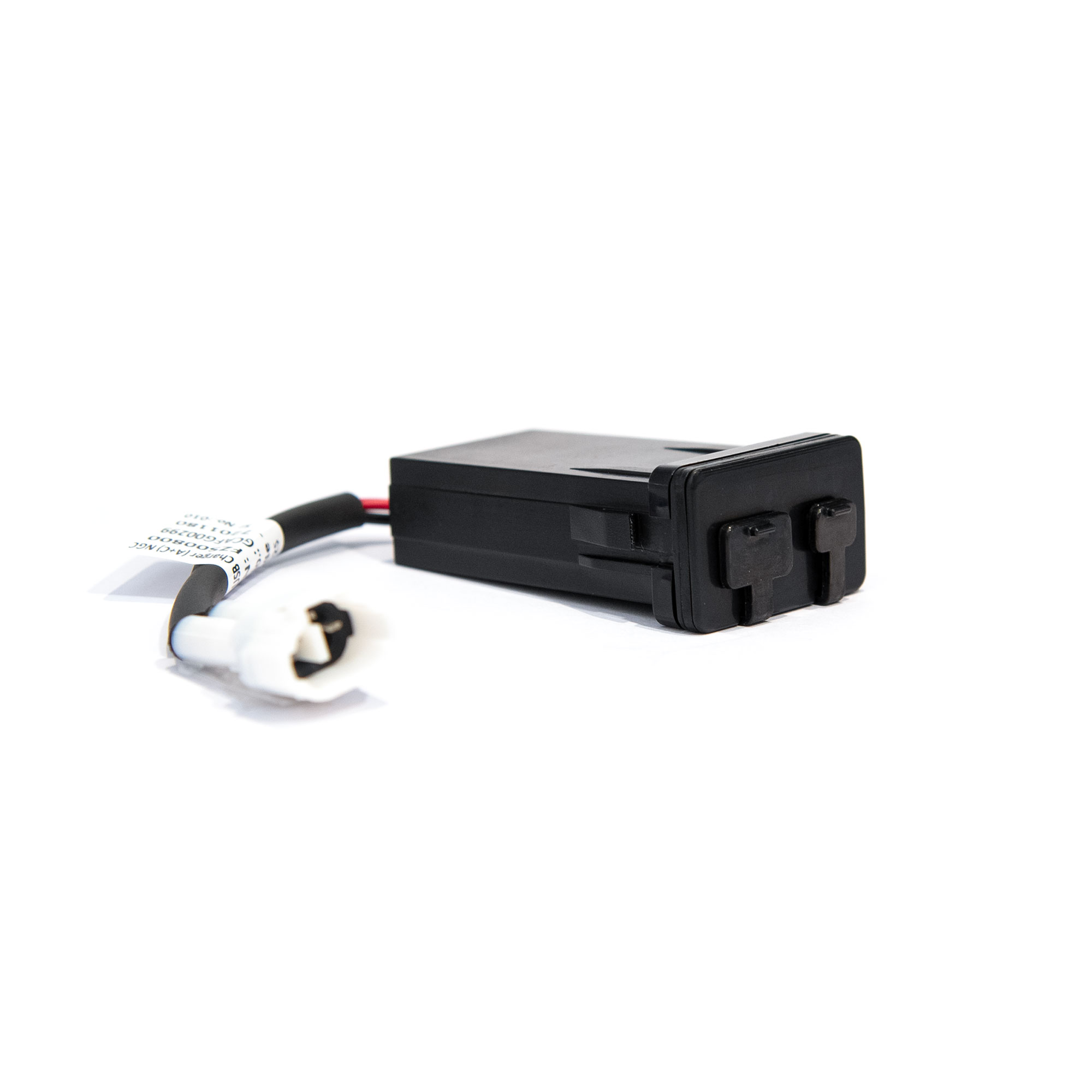

GC-5158

TECHNICAL SPECIFICATION

 Output Voltage at Cgarging Terminals 5+-0.5V DC 3A Load Max, (3A Single Output, 1.5+-1.5 Dual Output)
 Current Consumption at no load condition <5mA at 13.5+-0.5V DC
 Operating Voltage 9V-28V DC
 USB Charger specification will meet BC 1.2 as per USB if rated supply voltage 13.5+-0.5V DC

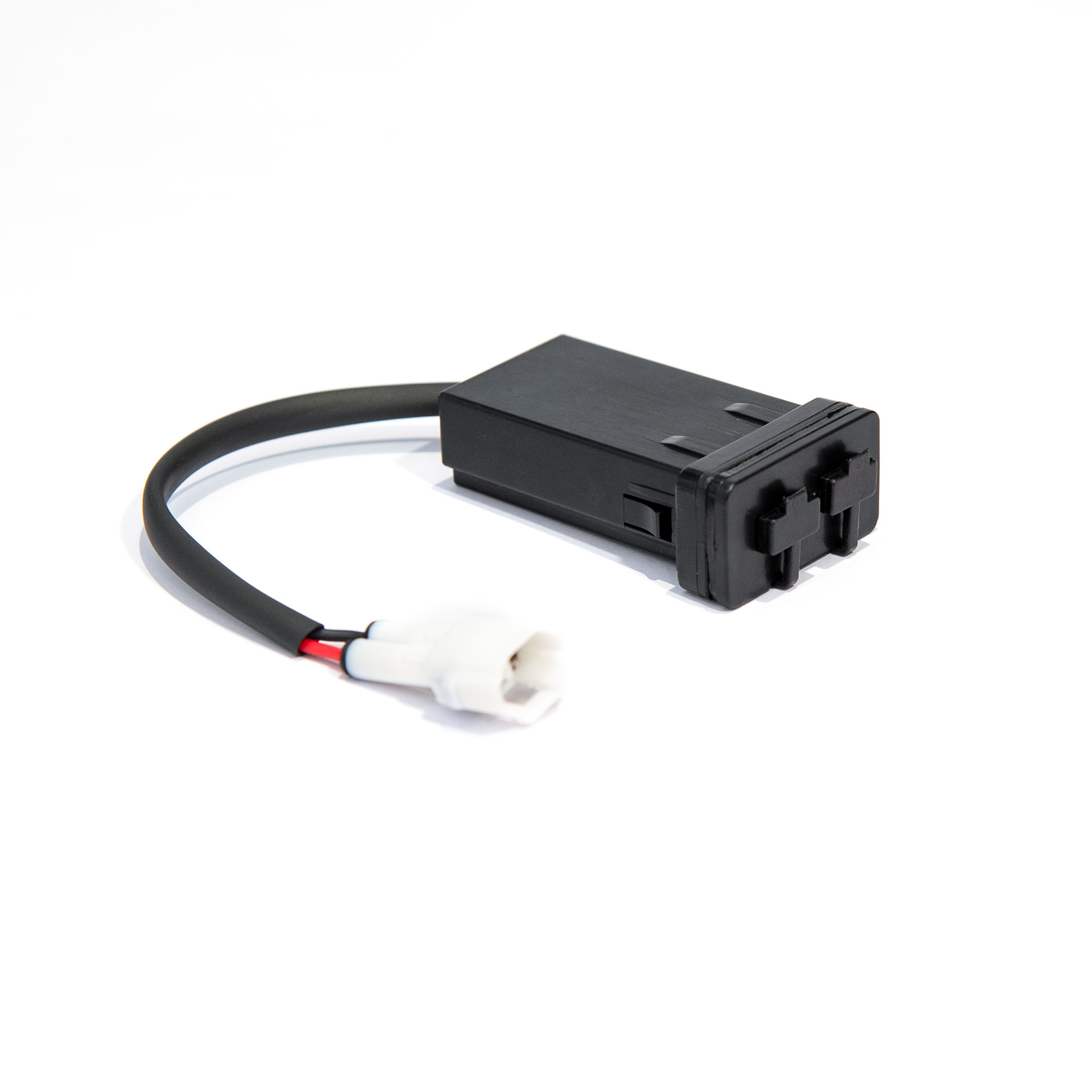

GC-N222

TECHNICAL SPECIFICATION

 Input Voltage : 12V-24V DC
 Output Voltage : 5V DC
 Output Current : 3A for each port
 USB : 2.0 for A & C Port
 IP Rating : IP65
 No. of Ports : 2 for A & A Port

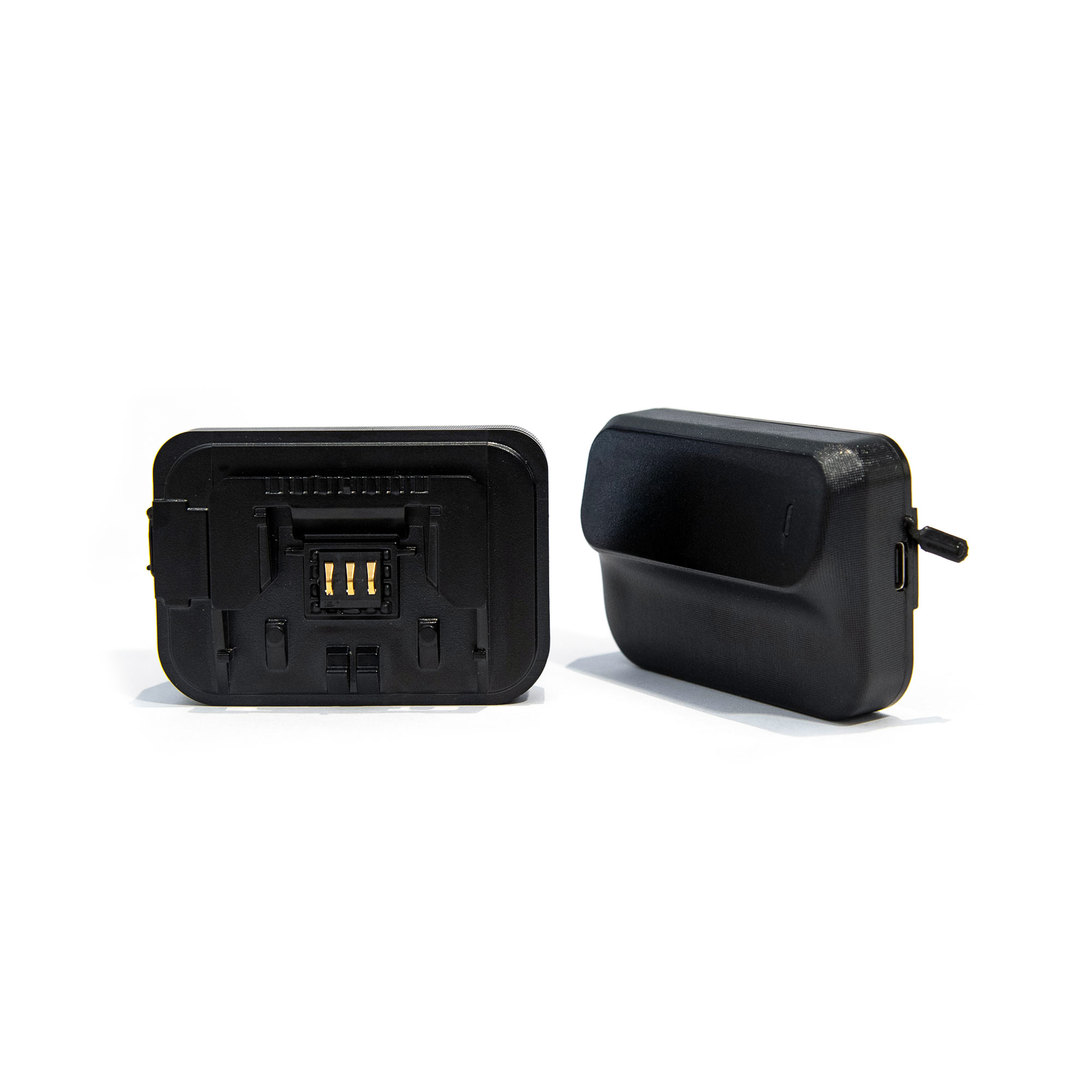

GC-TT022

TECHNICAL SPECIFICATION

 Output Voltage at Cgarging Terminals 5+-0.5V DC 3A Load Max, (3A Single Output, 1.5+-1.5 Dual Output)
 Current Consumption at no load condition <5mA at 13.5+-0.5V DC
 Operating Voltage 9V-28V DC
 USB Charger specification will meet BC 1.2 as per USB if rated supply voltage 13.5+-0.5V DC
